TruRyde Trailer Spindles - TRU87FR

· For 3500 lb Axle

· EZ Lube Spindle

· Round

· TruRyde

Replacement #84 E-Z Lube spindle welds onto your 3,500-lb trailer axle. Works with L68149 inner bearing and L44649 outer bearing. Grease zerk makes greasing easy. Flange lets you attach a brake assembly.



Features:

· Tapered spindle replaces a worn or damaged #84 E-Z Lube spindle on your trailer

o Can also be used to build a custom axle

· Integrated zerk makes greasing your bearings easy

· Mounting flange lets you bolt on a brake assembly

· Weld-on installation

· Sturdy steel construction



Specs:

· Application: 3,500-lb trailer axles

o Spindle capacity: 1,750 lbs

· Stub dimensions: 2-3/8" diameter x 3" long

· Spindle drop/rise: 4"

· Overall spindle length: 8-1/4"

· Brake flange configuration: 4 bolt



Bearing, Race, and Seal Information

· Bearings (sold separately):

o Inner bearing: L68149 (1.378" inner diameter)

o Outer bearing: L44649 (1.063" inner diameter)

· Races (sold separately):

o Inner race: L68111

o Outer race: L44610

· Grease seal (sold separately): 10-19

o Inner diameter: 1.719"

o Outer diameter: 2.565"

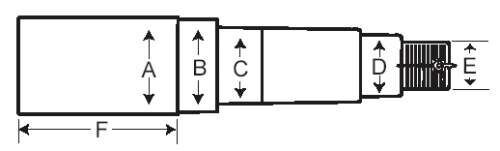

Part Number	Capacity	A	B	C	D	E	F	Round/Square
TRU87FR	1,750 lbs	2.375"	1.719"	1.378"	1.063"	1.00"	3.00"	Round - E-Z Lube and Brake Flange

SP-TT-IF-175Z TruRyde (TRP) Replacement EZ Lube #84 Round Spindle for 3.5K Axles - 4" Drop - Brake Mounting Flange - 2.375" Diameter x 8.25" OAL

Replaces LC123384
