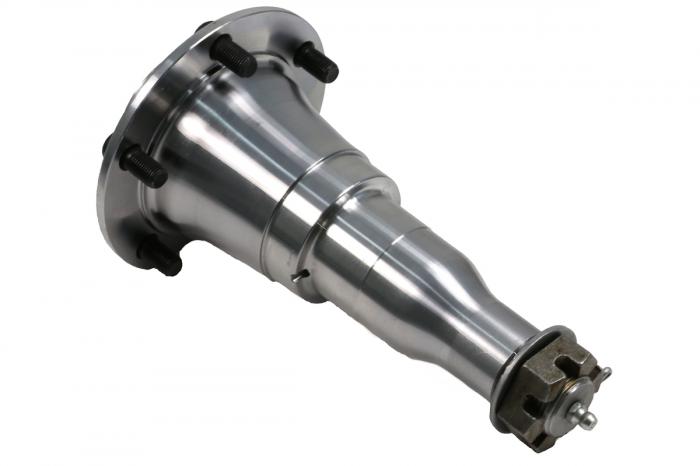

This highly precision hot forged spindle is a great way to repair a damaged or bent axle spindle.

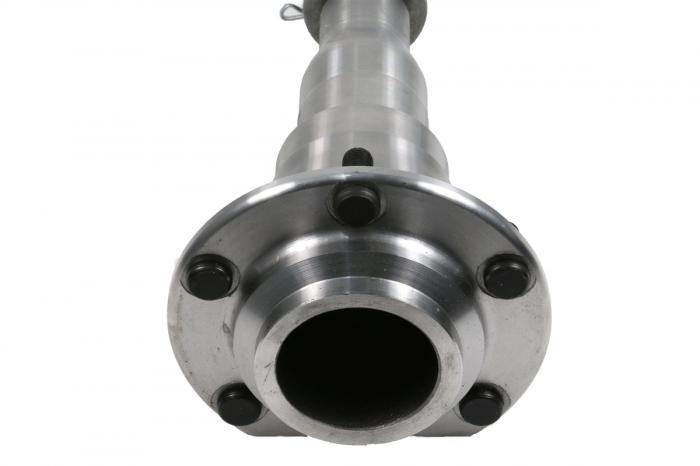

Hot forged integrated flange is superior to welded flanges because it ensures the spindle will not be warped.

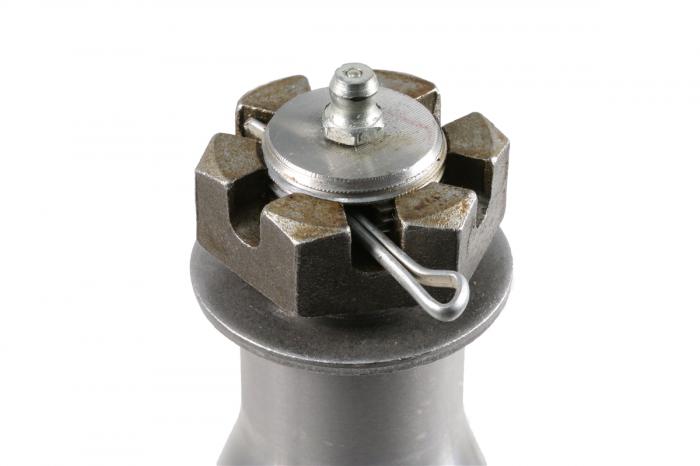

Comes standard with the easy lube grease zerk
Interchanges with almost all brands of axles. Works with common brands like Dexter, Al-ko, Rockwell American, and Lippard.
Brake flange is designed for the 12" electric or hydraulic brake assembly.
Washer, spindle nut and cotter pin included.
Manufacturer's Part Number: SP-HF-IFB-42L-225
Spindle Size: #42
Axle Size: 5,200-7,000
For Axle Tube Size: 3" Round
Spindle Weight Rating: 3,500 lbs
Grease Type: Easy lube with grease zerk
Flange Size: 5 bolt 12" Brakes
Flange includes 5 press in mounting bolts
Spindle is designed to take the 2-1/4" grease seal.
|
