Product Description

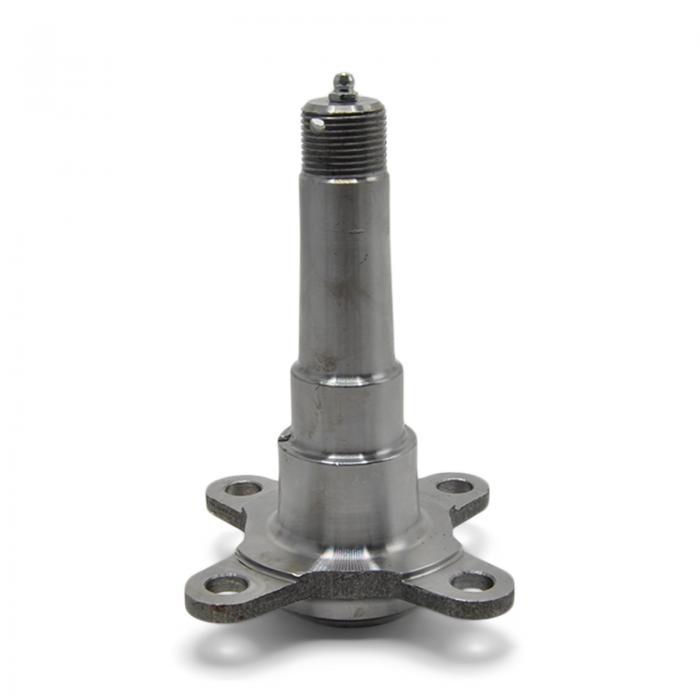

Replacement #84 E-Z Lube spindle welds onto your 3,500-lb trailer axle. Works with L68149 inner bearing and L44649 outer bearing. Grease zerk makes greasing easy. Flange lets you attach a brake assembly.
Features:
· Tapered spindle replaces a worn or damaged #84 E-Z Lube spindle on your trailer
o Can also be used to build a custom axle
· Integrated zerk makes greasing your bearings easy
· Mounting flange lets you bolt on a brake assembly
· Weld-on installation
· Sturdy steel construction
Specs:
· Application: 3,500-lb trailer axles
o Spindle capacity: 1,750 lbs
· Stub dimensions: 3-1/8" diameter x 1" long
· Overall spindle length: 6-1/8"
· Brake flange configuration: 4 bolt
Bearing, Race, and Seal Information
· Bearings (sold separately):
o Inner bearing: L68149 (1.378" inner diameter)
o Outer bearing: L44649 (1.063" inner diameter)
· Races (sold separately):
o Inner race: L68111
o Outer race: L44610
· Grease seal (sold separately): 10-19
o Inner diameter: 1.719"
o Outer diameter: 2.565"
Part Number |
Capacity |
A |
B |
C |
D |
E |
F |
Round/Square |
TRU77FR |
1,750 lbs |
3.125" |
1.719" |
1.378" |
1.063" |
1.00" |
1.00" |
Round - E-Z Lube and Brake Flange |
SP-HF-IF-8455Z TruRyde (TRP) Replacement EZ Lube #84 Round Spindle for 3.5K Axles - Brake Mounting Flange - 3.125" Diameter x 6.35" OAL
Replaces LC134563
