TruRyde Trailer Spindles - TRU39FR

· EZ Lube Spindle

· TruRyde

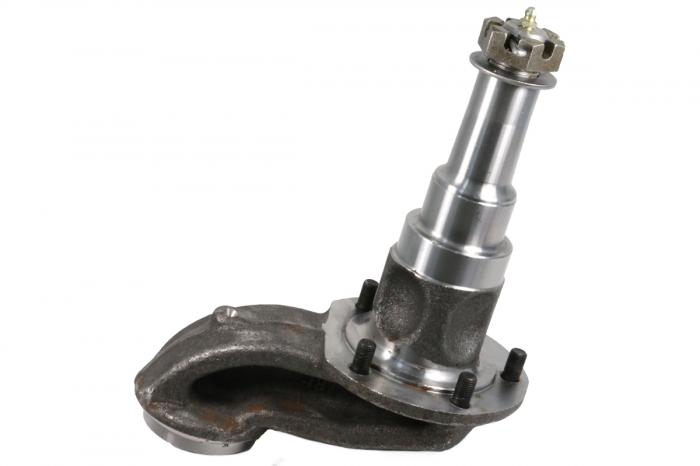

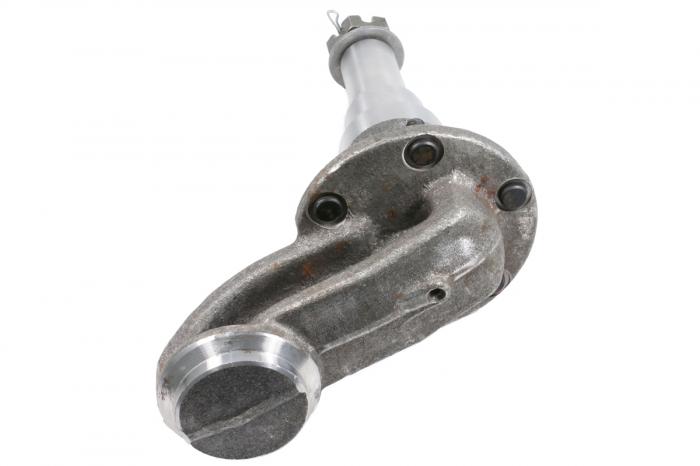

Replacement #42 E-Z Lube 4" drop spindle welds onto your 5,200-lb to 7,000-lb trailer axle. Works with 25580 inner bearing and outer bearings with 1.25" inner diameter. Grease zerk makes greasing easy. Flange for attaching a brake assembly.

Features:

· 4" Drop spindle replaces a worn or damaged #42 E-Z Lube spindle on your trailer

o Can also be used to build a custom axle

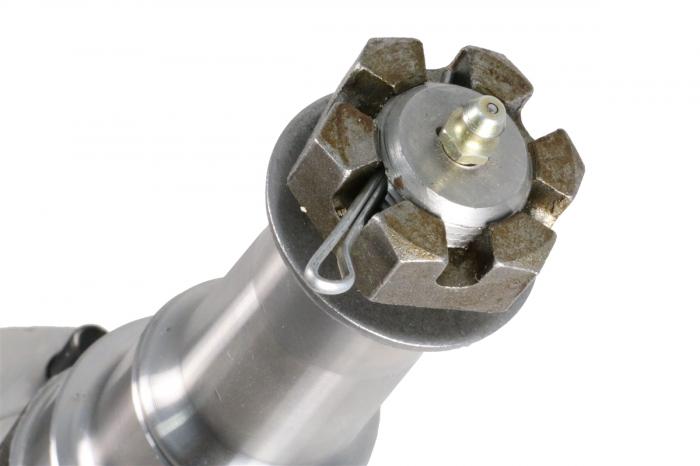

· Integrated zerk makes greasing your bearings easy

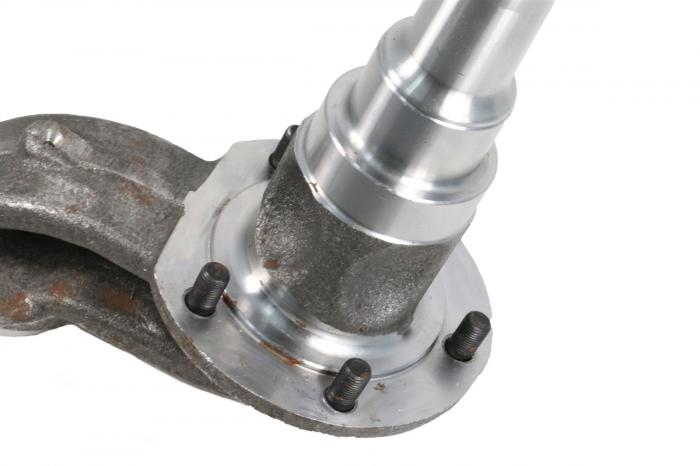

· Mounting flange lets you bolt on a brake assembly

· Weld-on installation

· Sturdy steel construction

Specs:

· Application: 5,200-lb - 7,000-lb trailer axles

· Spindle capacity: 3,500 lbs

· Brake flange configuration: 5 bolt

Bearing, Race, and Seal Information

· Bearings (sold separately)

o For 5.2K - 6,000-lb axles

§ Inner bearing: 25580 (1.75" inner diameter)

§ Outer bearing: 15123 (1.25" inner diameter)

o For 7,000-lb axle

§ Inner bearing: 25580 (1.75" inner diameter)

§ Outer bearing: 14125A (1.25" inner diameter)

· Races (sold separately)

o For 5.2K - 6,000-lb axles

§ Inner race: 25520

§ Outer race: 15245

o For 7,000-lb axles

§ Inner race: 25520

§ Outer race 14276

· Grease seal (sold separately): GS-2250DL

o Inner diameter: 2.25"

o Outer diameter: 3.376"

SP-UT-IFB-300Z-225 #42 E-Z Lube 4" Drop Spindle w/ Flange for 5.2K to 7K Trailer Axles - 3" Diameter
