Features:

· Tapered spindle replaces a worn or damaged #84 E-Z Lube spindle on your trailer

o Can also be used to build a custom axle

· Integrated zerk makes greasing your bearings easy

· Mounting flange lets you bolt on a brake assembly

· Weld-on installation

· Sturdy steel construction

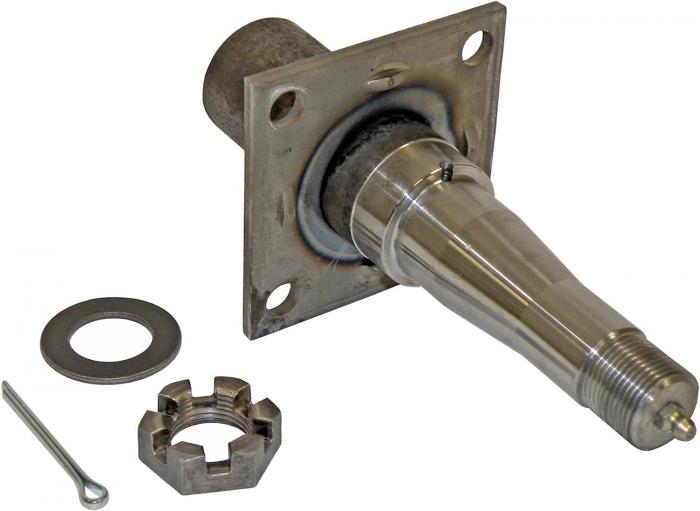

· Castle nut, tang washer, and D-washer included

Specs:

· Application: 3,500-lb trailer axles

o Spindle capacity: 1,750 lbs

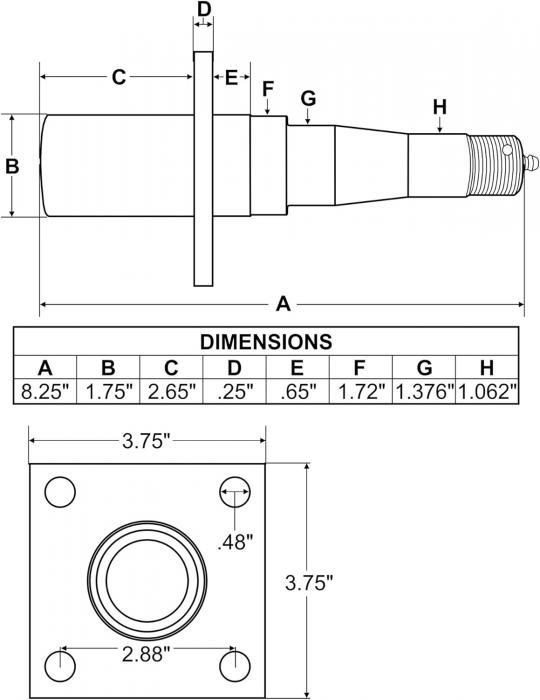

· Stub dimensions: 1-3/4" diameter x 4-1/4" long

· Overall spindle length: 9"

· Brake flange configuration: 4 bolt

Bearing, Race, and Seal Information

· Bearings (sold separately)

o Inner bearing: L68149 (1.378" inner diameter)

o Outer bearing: L44649 (1.063" inner diameter)

· Races (sold separately)

o Inner race: L68111

o Outer race: L44610

· Grease seal (sold separately): 58846

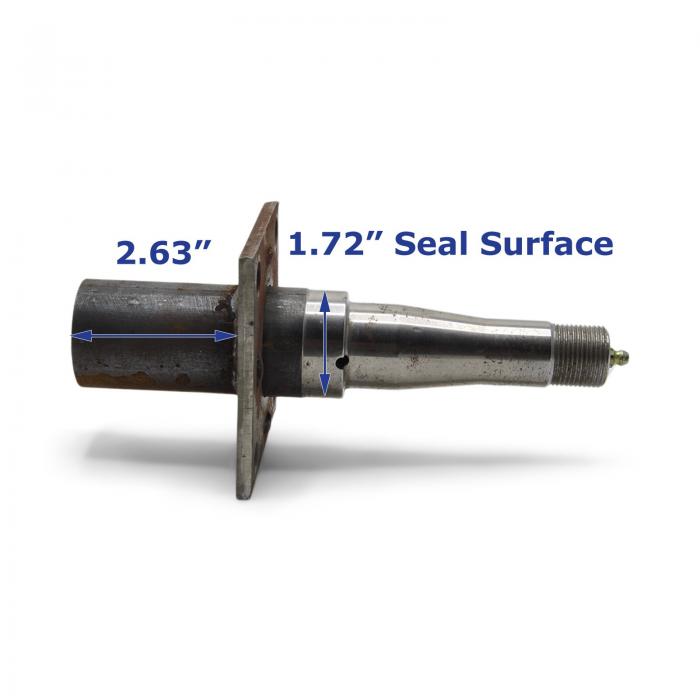

o Inner diameter: 1.719"

o Outer diameter: 2.565"
