Galvanized Boat Trailer Torsion Axle w/ Accu-Lube Hubs 3500lb 86" Hubface. Condition is "New"

This axle is designed specifically for 72" wide I beam boat trailer frames.

This 3500 lb Capacity Galvanized Boat Trailer Torsion Axle from Knott Axle is galvanized for corrosion resistance, and come with pre-installed with hot-dipped galvanized hubs and are common on many different brands of boat trailers. The "springless" suspension system uses four rubber chords surrounding the inner axle shaft to provide shock absorption at the appropriate levels based on the terrain and load spring, and will outlast traditional leaf spring suspension. Torsion Axles are mounted to the frame of boat trailers using U-bolts or bolts and can be affixed to I-Beam Frames, Tubing Frames, and C Channel frames. In most cases this axle would be used on an Aluminum I Beam Frame that previously had a torsion axle, and just needs a replacement.



Torsion Axle Specifications:

· Hubface measurement - 86"

· Brake flange measurement - 80"

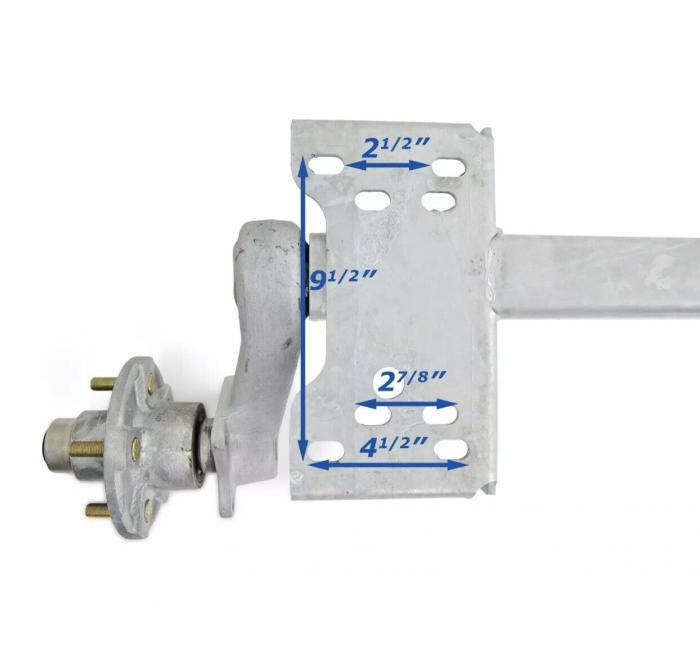

· Outside of torsion bracket - 74 1/2"

· Starting angle height (no load) - 4.26"

· Starting angle height (full load) - 2.04"

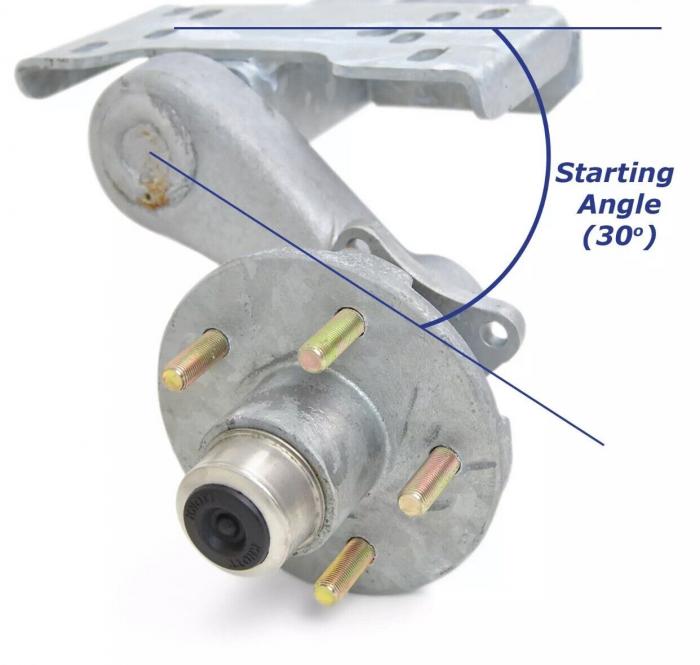

· Torsion axle starting angle - 30 degree down

· 5 on 4 1/2" bolt pattern

· 1.72" Inner Diameter Grease Seal

· 1 3/8" Inner Wheel Bearing (68149)

· 1 1/16" Outer wheel Bearing (44649)

· V Bend Style Torsion Axle with drain hole

· Grease-able spindle

· 4 Hole Brake Flanges for disc brakes

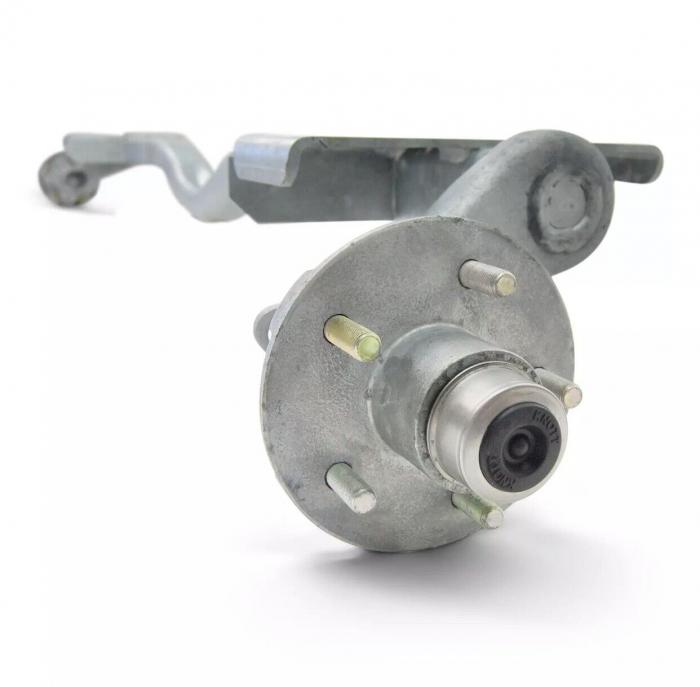

This Hot-Dipped Galvanized Torsion Axle ships with galvanized Idler hubs installed.  The hubs and bearings are pre-greased with a lithium-based grease, but additional grease may be added after installation.

Galvanized Hub Specifications:

· 5 on 4 ½ inch Bolt Pattern

· 1 3/8 inch inner bearing, 1 1/16 inch outer bearing

· 1.72 inch inner diameter grease seal

· Hot-Dipped Galvanized

· 1.98 dust cap size, dust cap is included and has a removable rubber plug for easy access to the Spindles built-in Grease fitting.


If you need to replace the mounting hardware as well, either Click the Check Box for (4) I Beam Torsion Axle Mounting Bolts SS, or Go to 1/2 inch Diameter by 1 1/2 inch Long Stainless Steel Bolt  and order the quantity you need (typically 4 total per axle.)

New Mounting Holes May need to be drilled in order to install the new axle.

These Axles can be used on Boat Trailers or Utility Trailers.  Box Trailers, Car Haulers, Horse Trailers etc. can all benefit from the Torsion Arm System over leaf springs, and the Galvanized Coating will last even longer if the trailer isn't entering saltwater.
