Product Description

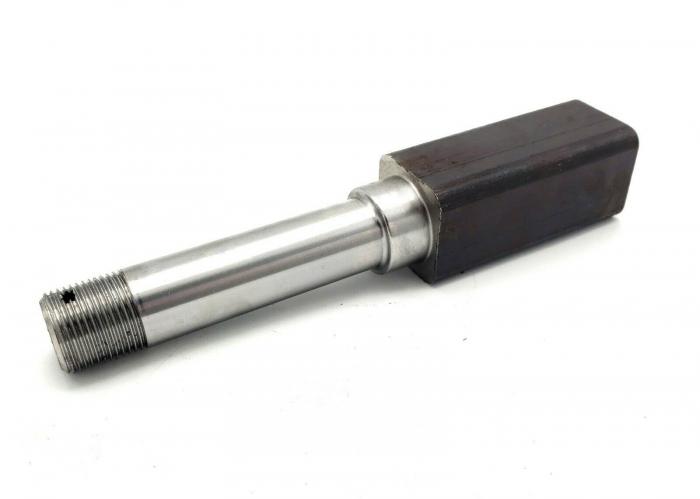

Replacement BT8 spindle welds onto your 2,000-lb trailer axle. Works with L44643 inner and outer bearings. Castle nut, washer, and cotter pin included.
Features:
· Straight spindle replaces a worn or damaged BT8 spindle on your trailer
o Can also be used to build a custom axle
· Weld-on installation
· Sturdy steel construction

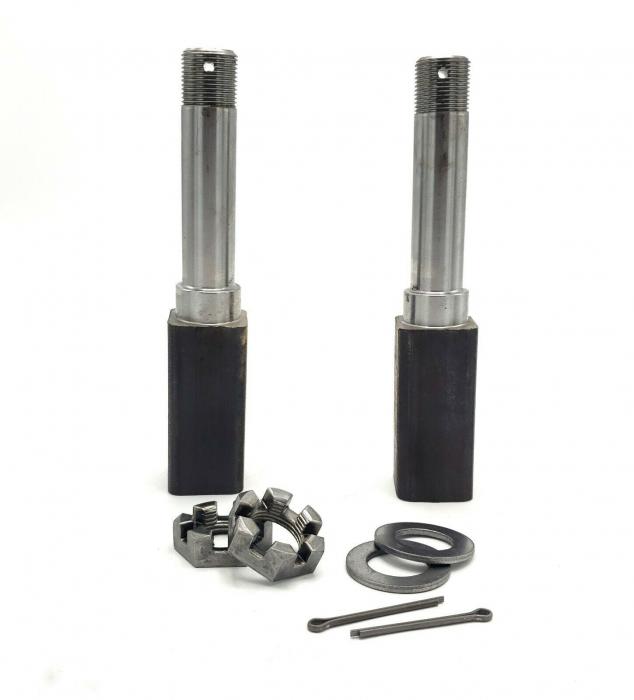

· Castle nut, washer, and cotter pin included
Specs:
· Application: 2,000-lb trailer axles
o Spindle capacity: 1,000 lbs
· Stub dimensions: 1-1/2" wide x 3-1/2" long
· Overall spindle length: 8-3/8"
Bearing, Race, and Seal Information
· Bearings (sold separately):
o Inner bearing: L44643 (1.00" inner diameter)
o Outer bearing: L44643 (1.00" inner diameter)
· Races (sold separately):
o Inner race: L44610
o Outer race: L44610
· Grease seal (sold separately): 34823
o Inner diameter: 1.25"
o Outer diameter: 1.983"

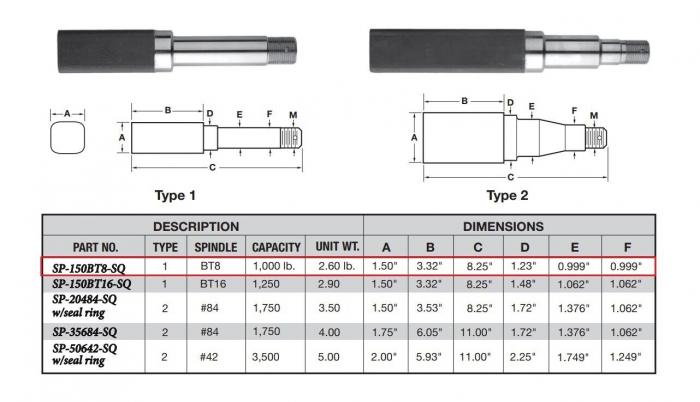

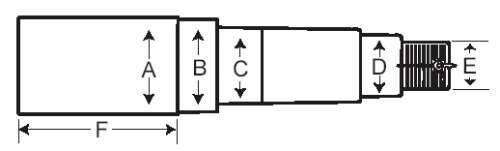

Part Number |
Capacity |
A |
B |
C |
D |
E |
F |
Round/Square |
TRU97FR |
1,000 lbs |
1.50" |
1.25" |
1.00" |
1.00" |
1.00" |
3.50" |
Square |
SP-150BT8-SQNWC TruRyde (TRP) Replacement BT8 Square Spindle for 2K Axles - 1.625" Wide x 8.375" OAL
Replaces SP204BT8
