Location:Index--->Product Center >> Trailer Axle >> Sturdy Built Galvanized Boat Trailer Knott Torsion Axle with Accu-Lube Hubs 3500lb 86′′ Hub face

|
|
||||||||||||||||||||||||||||||
Product Description

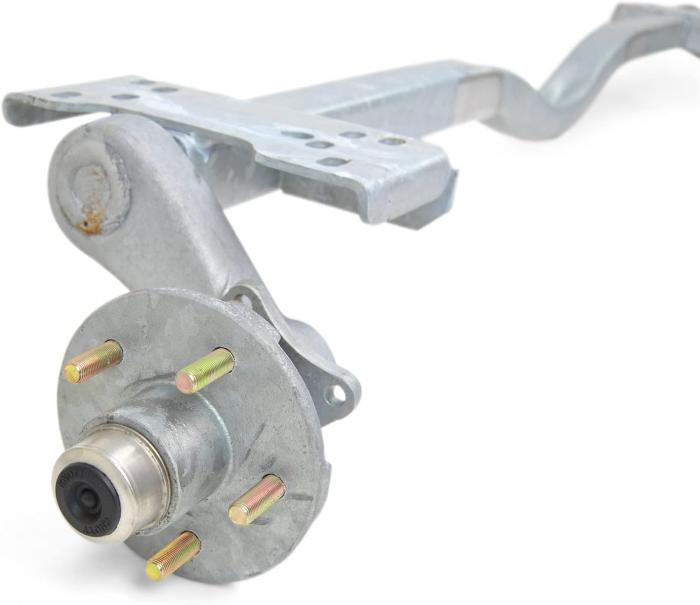

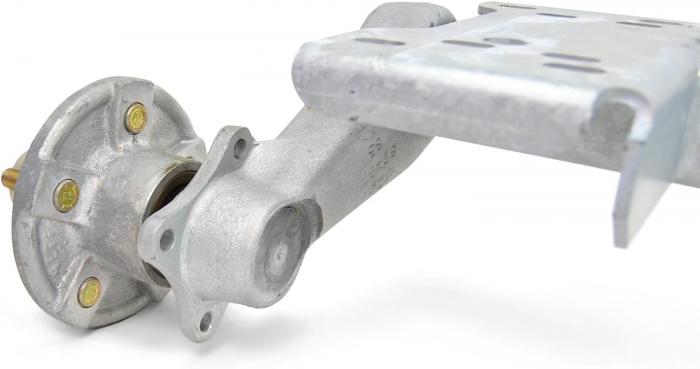

The trailer torsion axle commonly used on HARSCO Trailers offers a smoother ride for your trailer and greater peace of mind for you. Axle weldment includes super lube grease zerk spindles, spindle nuts and cotter pins. Wheel hubs and bearings sold separately.
Axle Type: 3-1/2" x 3-1/2" Square - Straight Painted Torsion Axle
Load Rating: 7000 lbs.
Overall Length: 98" End of Spindle to End of Spindle

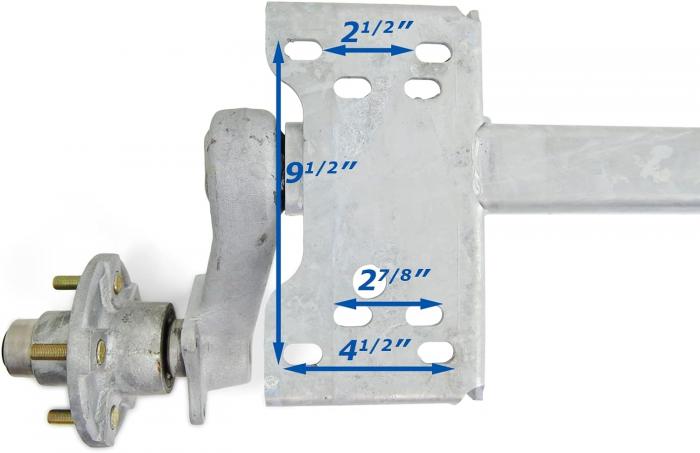

Mounting Bracket (Outside): 80"
Hub Face: 94"
Torsion Arm Length: 6"
Spindle Size: 1-3/4" x 1-1/4" (grease seal lip I.D. = 2.25")
Hub Type: Short Spindle for Idler (Hubs and bearings not included)
Torsion Arm: 10° Up
