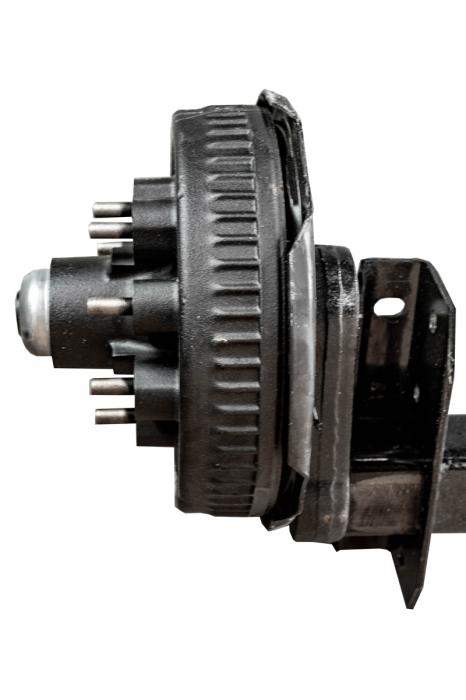

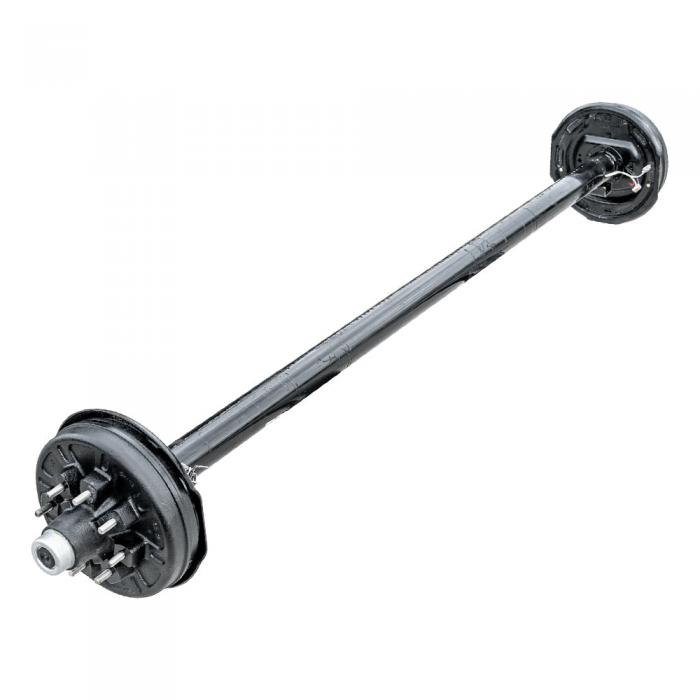

Complete 7,000 lb. torsion trailer axle - electric brakes & drums w/ 8-9/16" studs
94" hubface with a 80" outside of brackets
Comes with a 10' Up torsion arm
Built at a ISO 9001 Certified company
Heat treated solid steel inner bar surrouned with 4 rubber cords for cushioning
Independent suspension and self-damping

Torsion Axle Tube:3.50" OD Square Tube

Spindle Size:#42F with grease zerk

Hub:8-219-13 Drum / Hub with 9/16" wheel studs

Inside components:
Brakes:
23-180 LH 12" x 2" electric brake
23-181 RH 12" x 2" electric brake

Bearings:

Races:


Torsion Axle Specifications:

Weight rating: 7,000 lb. capacity
Hub Face to Hub face: 94"
Outside of bracket to bracket: 80"
Torsion angle : 10° UP
Bolt Pattern: 8 lug on 6.5"
Wheel Stud Size: 9/16"
Brake Type: Electric Brakes 12" by 2"
Lubrication: Zerk-lube spindles with grease zerk
Part number: TTA015.

New Mounting Holes May need to be drilled in order to install the new axle.

These Axles can be used on Boat Trailers or Utility Trailers.  Box Trailers, Car Haulers, Horse Trailers etc. can all benefit from the Torsion Arm System over leaf springs, and the Galvanized Coating will last even longer if the trailer isn't entering saltwater.
