Name:Trailer Axle with Idler Hubs - 4" Drop - 5 on 4-1/2 Bolt Pattern - 89" Long - 3,500 lbs
Capacity3,500 lbs
Hub face89 inch
Spring center74 inch
Spindle drop4 inch
Hub bolt pattern5 on 4-1/2 inch
Grease cap flange diameter1.988 inch
Wheel stud1/2 inch diameter x 1-5/16 inch long
Axle diameter2-3/8 inch
Wheel size13 to 15 inch
Lubricationgrease zerk
FinishBlack E-coated

Product Description

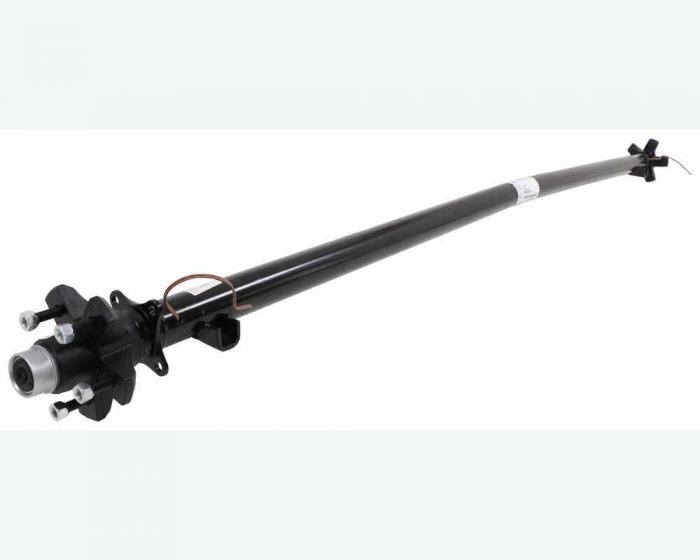

Round trailer axle beam measures 89" from hub-face-to-hub-face and 74" from spring-center-to-spring-center. Includes pre-greased idler hubs - with bearings, races, and seals - for 13" to 15" wheels.



Features:

· Round axle beam acts as part of your trailer's suspension system

· Replace an axle on your trailer

· Fabricate a suspension to fit your application

· High-strength steel construction

· Bend in axle creates zero camber angle for even road-to-tread contact across the width of your trailer's tires

· Best for straight-line acceleration and steady, controlled towing

· Underslung design - spring seats welded to underside of axle for mounting leaf springs (sold separately)

· Low ride height makes it easier to load and unload your trailer

· 4" Drop, Easy Grease spindles

· Lowered axle beam provides lower deck height for easier loading and unloading

· Patented welding process prevents spindle failure with 40% stronger welds

· Built-in grease zerk for simple lubrication

· Spring seats and spindles are welded on

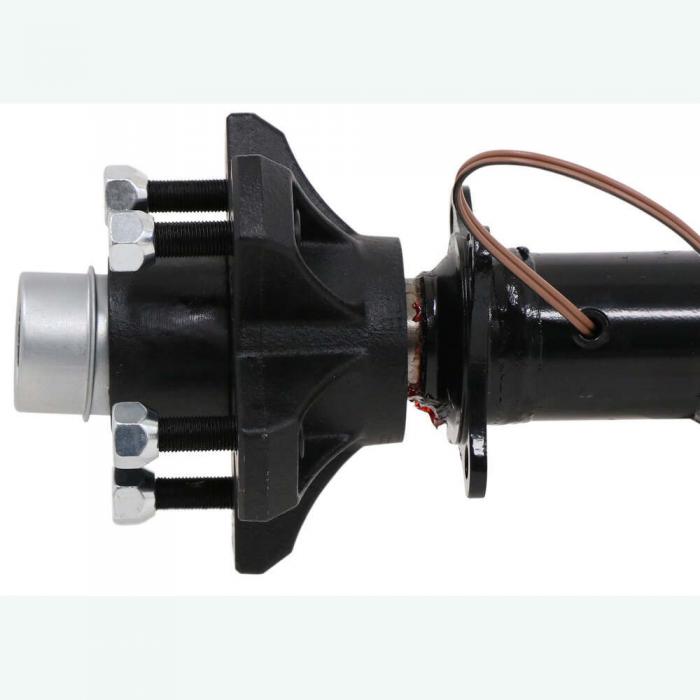

· Cast iron idler hubs are sturdy and durable

· Pre-greased idler hubs with bearings, races, seals, and lug nuts - no need to pack bearings

· CSA, QAI, and SAE-N certified



Specs:

· Weight capacity: 3,500 lbs

· Hub-face-to-hub-face length: 89"

· Spring-center-to-spring-center length: 74"

· Spindle drop: 4"

· Hub bolt pattern: 5 on 4-1/2"

· Grease cap flange diameter: 1.988"

· Wheel stud dimensions: 1/2" diameter x 1-5/16" long

· Axle diameter: 2-3/8"

· Wheel size: 13" to 15"
