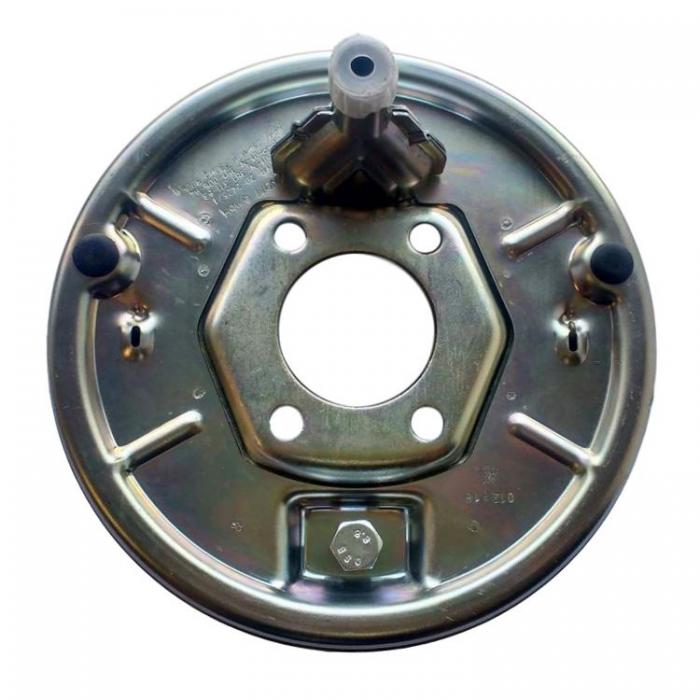

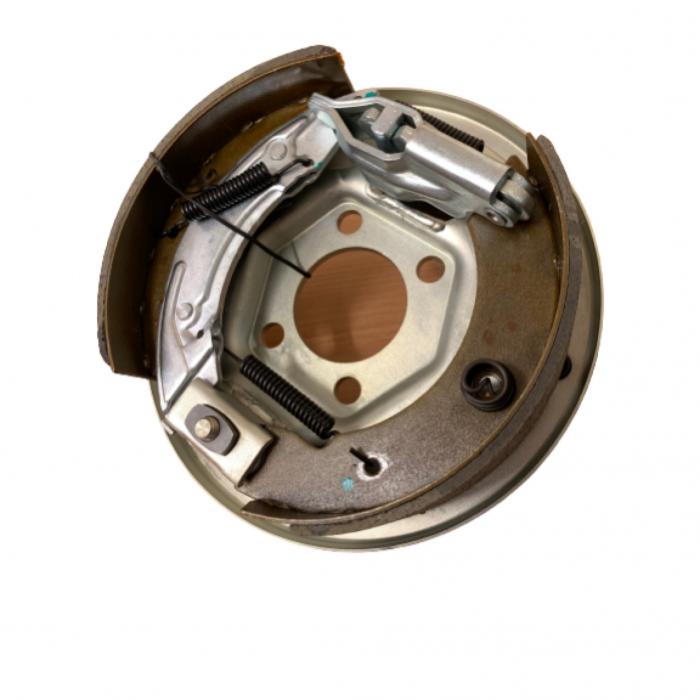

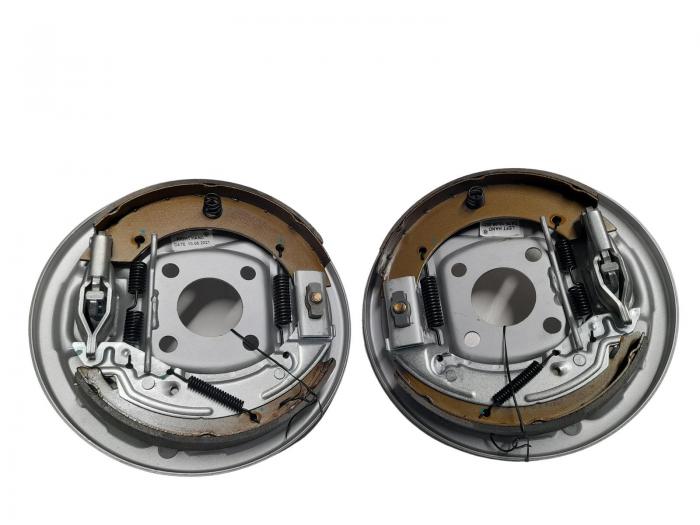

200x50mm Trailer Backplate Assembly - Genuine Trailer Brake Part

This part is for the Left Hand side only (looking from the rear of the Trailer).

Included in 200x50mm Trailer Backplate Assembly;

· Brake expander

· Brake shoes

· Springs

· Cover plates

· Brake adjuster

· Eyelet to attach cable

Suitable for trailer suspension units up to 1800kg.

Designed for welding onto your stub axle - centre hole diameter is 55mm.

This is an Auto Reverse brake assembly, therefore you shouldn't require a Reverse Stop Assembly on your trailer coupling.

The Auto Reverse mechanism on this brake is designed to automatically release the brakes, when reversing your Trailer.

This is a Left Hand Backplate Assembly.

If you require a Right Hand backplate assembly, then please follow the link below;
Trailer 200x50mm Right Hand Backplate

This Backplate is designed to take Trailer Detachable Brake Cables
