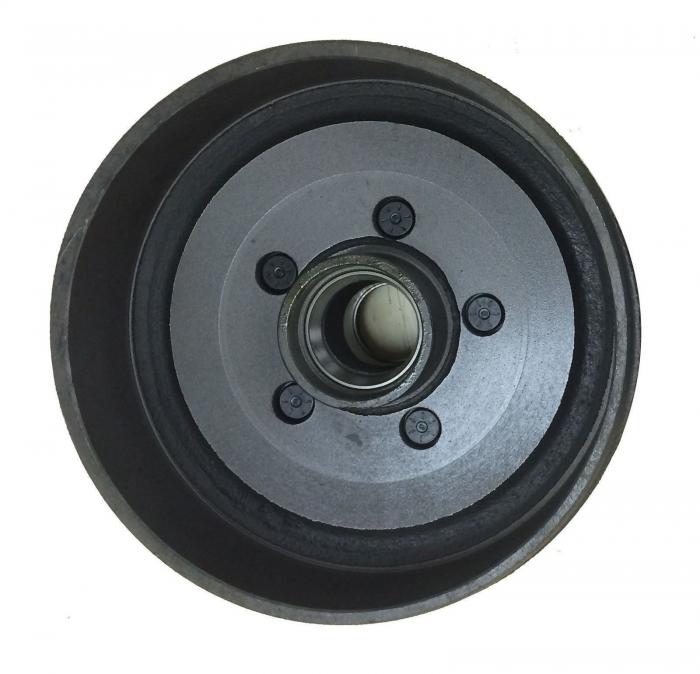

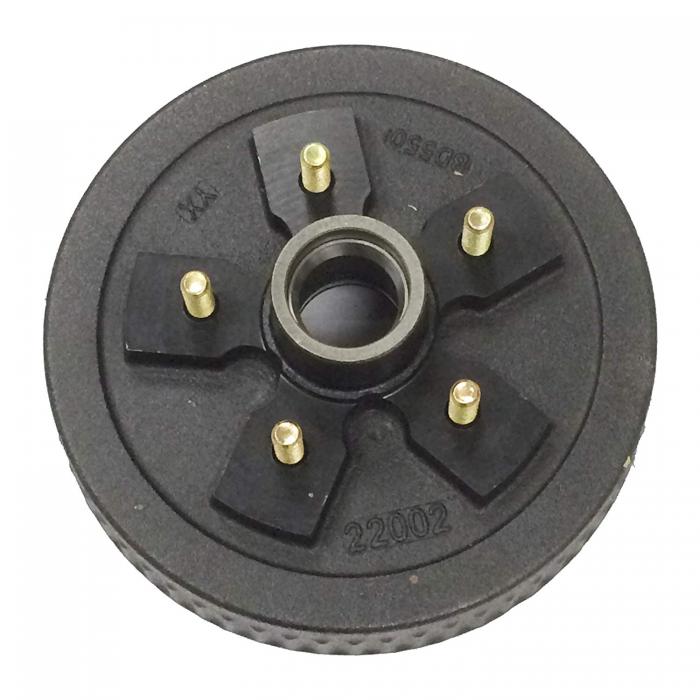

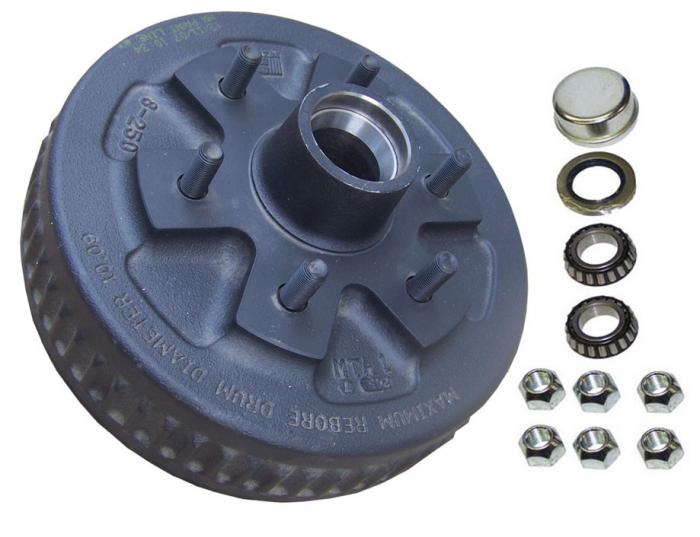

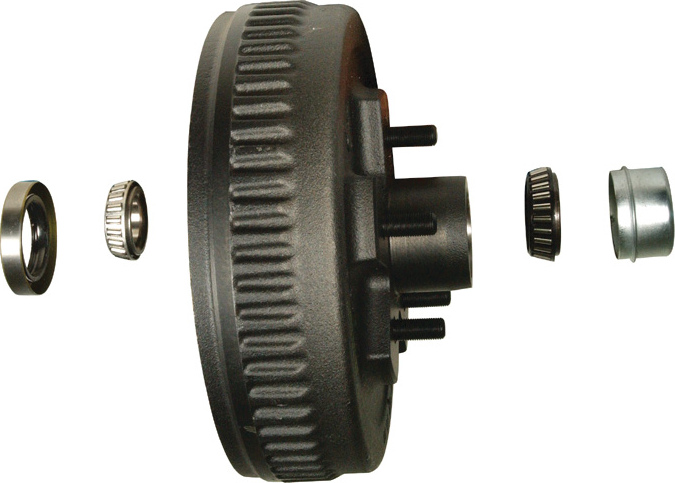

This hub-and-drum assembly fits 3,500-lb axles with #84 spindles. Compatible with electric or hydraulic brakes. Inner bearing (L68149) and race, outer bearing (L44649) and race, grease seal, grease cap, wheel bolts, and lug nuts included.

Features:

· Trailer hub-and-drum assembly provides surface area for brake shoes to grip when brake is activated

o Compatible with electric and hydraulic drum brakes

· Sturdy iron construction

· Bearings, races, grease seal, grease cap, wheel bolts, and lug nuts are included

· Hub and drum are made in China

Specs:

· Application: 3,500-lb trailer axles with #84 spindles

· Drum dimensions: 10" diameter x 2-1/4" wide

o Works with 10" brake assembly

· Bolt pattern: 5 on 4-1/2"

· Grease cap flange diameter: 1.986"

· Wheel bolt diameter: 1/2"

· Weight capacity: 1,750 lbs

Bearing, Race, and Seal Information

· Bearings (included)

o Inner bearing: L68149 (1.378" inner diameter)

o Outer bearing: L44649 (1.063" inner diameter)

· Races (included)

o Inner race: L68111

o Outer race: L44610

· Grease seal (included): 58846

o Inner diameter: 1.719"

o Outer diameter: 2.565"
