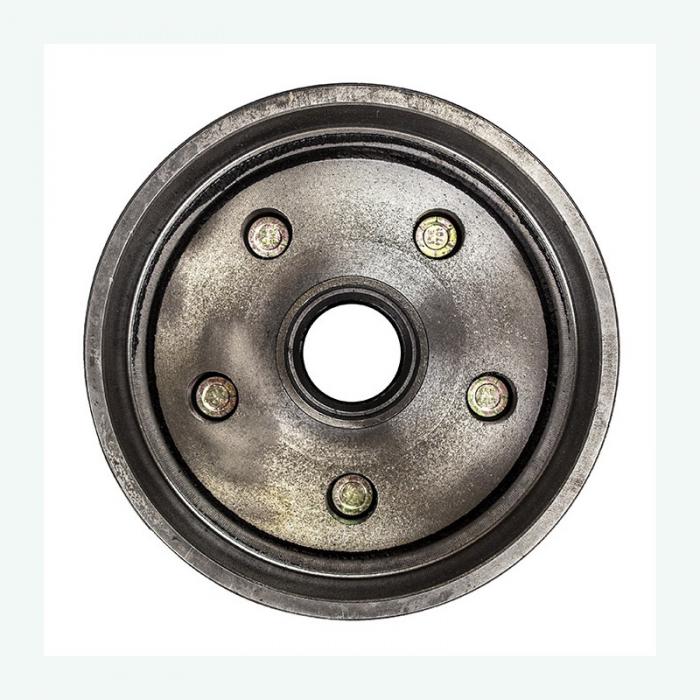

7" x 1-1/4" Brake Drum - 5 on 4 1/2" with 1-1/16" Bearings (L44649) - 1/2" Studs

This brake drum assembly by UCF The Universal Group LLC (manufacturer part number BD-75450) is used on small capacity trailers to improve stopping capability.  This drum will come with all internal hardware for mounting.

Product Features:

· Compatible with either electric or hydraulic brake systems

· Cast iron construction with a black painted finish

· Integral, one piece hub and drum combination

· Used on small capacity trailers with axle brake flanges installed

· Pre-pressed races and studs

· Includes bearings, grease seal, grease cap and lug nuts

· Used on axles with 2,000 lbs. capacities

· Fits brakes that are 7" in diameter pad to pad with 1 1/4" width

· Grease sold separately

Product Specifications:

· Drum Dimension: 7" x 1 1/4"

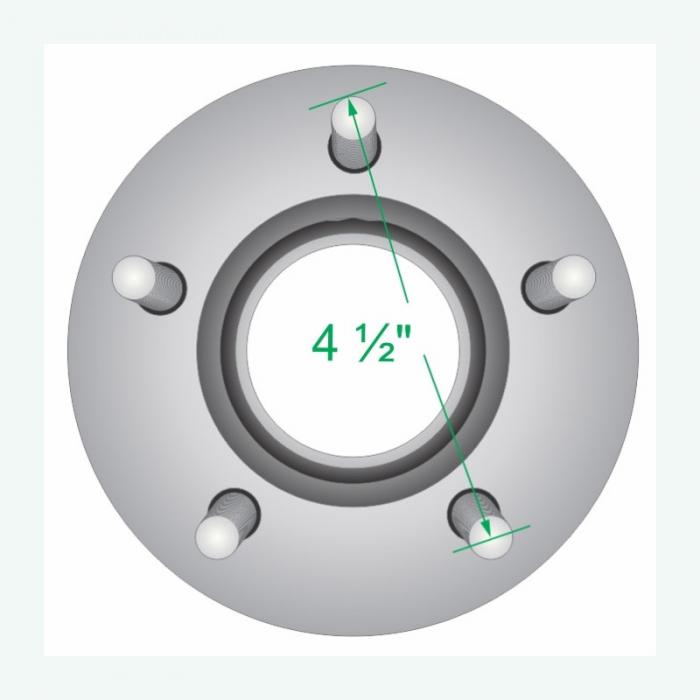

· Bolt Pattern: 5 on 4 1/2"

· Stud Diameter: 1/2"

· Axle Capacity: 2,000 lbs.

· Wheel Size: 10" x 13"

Hardware Specifications:

· Inner Bearing: L44649 (1 1/16")

· Outer Bearing: L44649 (1 1/16"

· *Grease Seal Inner Diameter: 1.25" & 1.50"

· Grease Seal Outer Diameter: 1.98"

· Grease Cap: 1.98"

· Lug Nuts: 1/2"-20

*NOTE: This drum includes (2) grease seals that have different inner diameters to accommodate spindles with different sized wear surfaces.

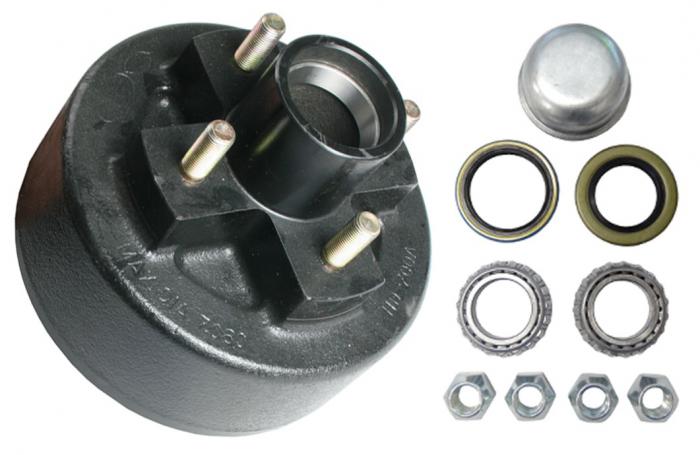

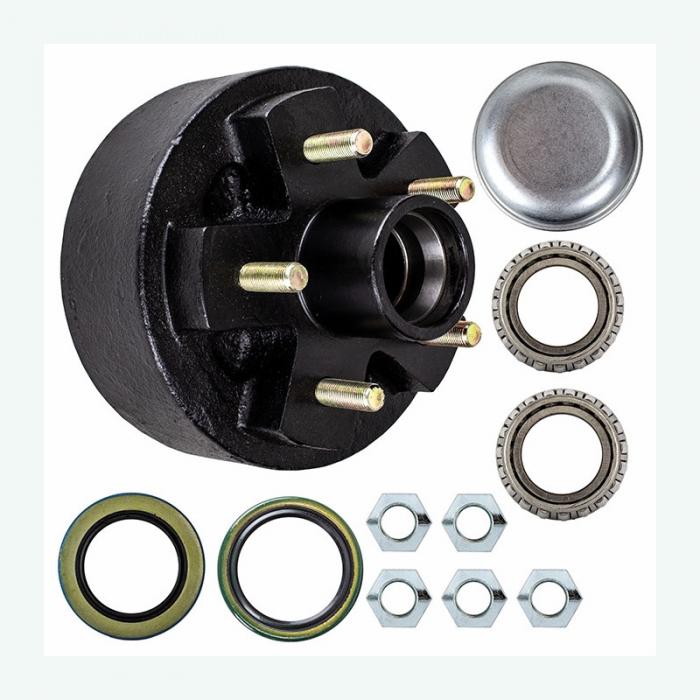

Includes:

· (1) 5 Bolt Drum

· (1) Inner Bearing

· (1) Outer Bearing

· (2) Grease Seals

· (1) Grease Cap

· (5) Lug Nuts
