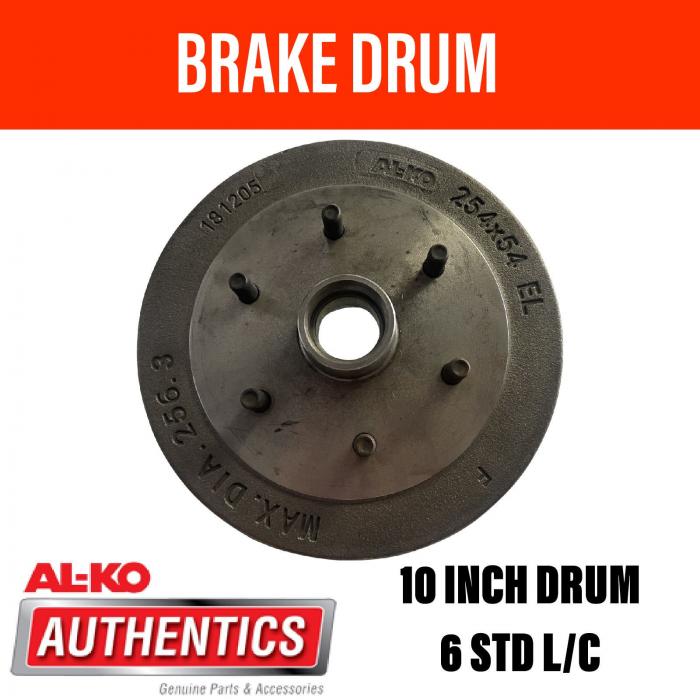

Hub Drum - 10" Electric - Landcruiser 6 Stud - Studs Only

Part Number: 428220

Hub Drum 10”, Landcruiser Stud Pattern (6x 5.5” (139.7mm) PCD)
Fitted with 1/2” UNF wheel studs.

Includes:

· 1 x Hub Drum fitted with 6 x 1/2” wheel studs.

Hub Drum - 10" Electric - 6 Stud Landcruiser - Studs Only

Suits Parallel Bearings

All of AL-KO's hubs are manufactured from high grade ductile iron to give maximum achievable strength.
Some of AL-KO's hubs are available in zinc plated or hot dipped galvanised finish as well as the traditional raw cast finish.

The capacity of a hub is dependent on the size of wheel bearings fitted and such dimensional limits such as flange diameter and the available hole in the wheel to which it is fitted (on the hub this is the hub outer boss dimension).

To ascertain what hub from the vast AL-KO range is required it is important to know the following:

· Total load you expect a pair of hubs to carry in kg.

· Wheel bearing type to be fitted (LM, slimline, 1.5 t, etc).

· Wheel drilling pattern (4 stud Datsun, 5 stud Mini, 5 Stud HQ Holden, 5 stud Ford, 6 stud Landcruiser).

· 1 X PAIR TRAILER HUB DRUM SUIT 6 STUD LANDCRUISER 10 INCH

· 1 X PAIR BACKING PLATE 10 INCH - COMES ASSEMBLED WITH HAND BRAKE LEVER, STANDARD ELECTRIC MAGNET, BRAKE SHOES

· ELECTRIC SETUP

· COMES WITH NUTS, BEARINGS, OIL SEAL, DUST CAP

· LM BEARINGS (1 X 11910/49, 1 X 67010/48)

· THESE BEARINGS SUIT 39MM AND 40MM AXLES

· STUD SIZE: 1/2INCH

· PCD:139.7MM - 70MM STUD TO STUD
