Location:Index--->Product Center >> Trailer Hub >> Trailer Idler Hub Assembly for 3,500-lb Axles - 5 on 5" Bearings 5 lug 84

|
|
||||||||||||||||||||||||||
Product Description
this listing is for:

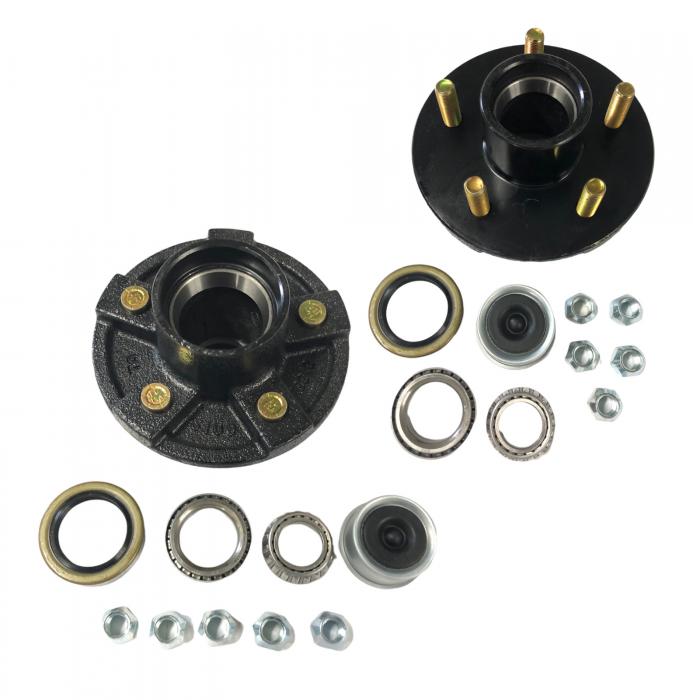

Two (2) 3.5k idler hubs 5x5" with bearings, races, seals, lug nuts and grease caps
Hub is designed for use on trailer idler axles. Fits 3.5K E-Z Lube, Easy Grease, and standard grease axles with #84 spindles. Inner bearing (L68149) and race, outer bearing (L44649) and race, grease seal, grease cap, and lug nuts included.
Features:
Trailer hub assembly fits idler axles
Bearings, races, seal, grease cap, and lug nuts are included
Dexter E-Z Lube and rany other Easy Grease-compatible grease cap makes lubricating bearings fast and easy
Remove rubber plug to access zerk fitting on spindle - no need to disassemble hub
Sturdy iron construction
Zinc-enriched paint finish
Specs:
Application: 3,500-lb Dexter E-Z Lube and any other Easy Grease trailer axles with #84 spindles
Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
Wheel size: 15"
Bolt pattern: 5 on 5"
Wheel stud dimensions: 1/2" diameter x 1-5/16" long
Grease cap flange diameter: 1.99"
Weight capacity: 1,750 lbs
Limited 1-year warranty
Bearing, Race, and Seal Information
Bearings (included)
Inner bearing: L68149 (1.378" inner diameter)
Outer bearing: L44649 (1.063" inner diameter)
Races (included)
Inner race: L68111
Outer race: L44610
Grease seal (included): 58846
Inner diameter: 1.719"
Outer diameter: 2.565"
