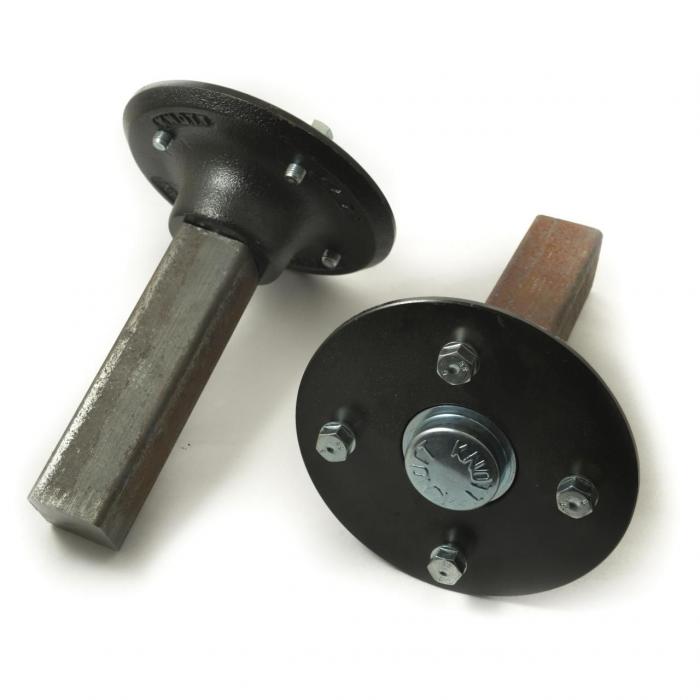

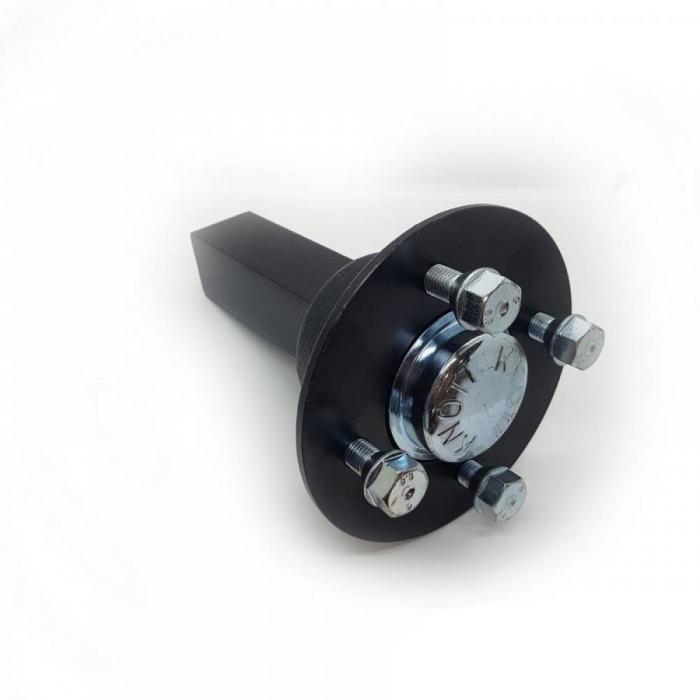

Knott Avonride Trailer Stub Axle 4x100mm PCD P Series - No Stud Bolts

The Knott Avonride Trailer Stub Axle 4x100mm PCD P Series is a genuine Knott Avonride part.

Knott Hub and stub axle kit

4x100mm hub

fits 50mm (2") box iron. (5mm wall)

The square sub is 40 x 40mm.


For off road use ONLY.

Weld on trailer stub axle complete with;

· 64mm BZP Hub Cap

· As well as 30x64x37mm 63331 Sealed for Life Bearing

The hub also has a PCD measurement of 100mm.

P Series Hub designed to fit 25mm to 30mm wheel offset.

Maximum Load Rating - 750kg.

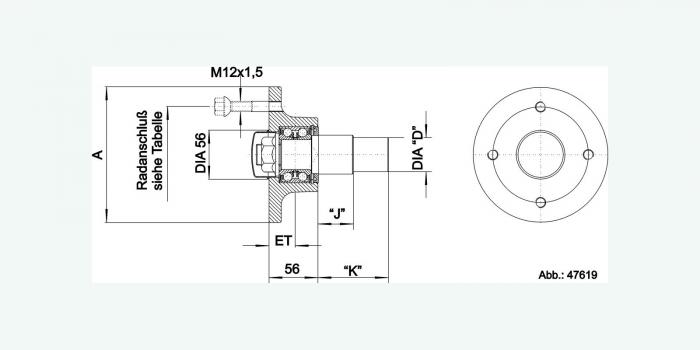

If you require information on PCD, then please see image further down the page.

PLEASE NOTE - Stud Bolts are not included.

If you wish to purchase trailer wheel stud bolts for the hub, then please follow link below;

M12 Knott Avonride Stud Bolts

These are conical stud bolts.

Is you wish to purchase the locking wheel nuts for the hub, then please follow the link below;
M12 Conical Locking Wheel Bolts

The hub is also fitted with an SFL- Sealed For Life bearing.


The One Shot Nut is an M24 with 32mm head.
Fitted to the hub already, but spares are also available;
Knott Avonride M24 32mm One Shot Nut - Torque setting - 280NM

Trailer parts to suit a complete axle rebuild or partial replacement.

· Hub kits to fit on a new or existing trailer axle

· Hub and stub kits that also include a weld on stub axle

· Braked or non braked hubs, disc brakes or drum brakes to suit a range of applications

· Wireless trailer brake controller systems

· Non-braked hubs and braked hub options

· Comprehensive spare parts, such as brake pads, stub axles, seal kits etc
