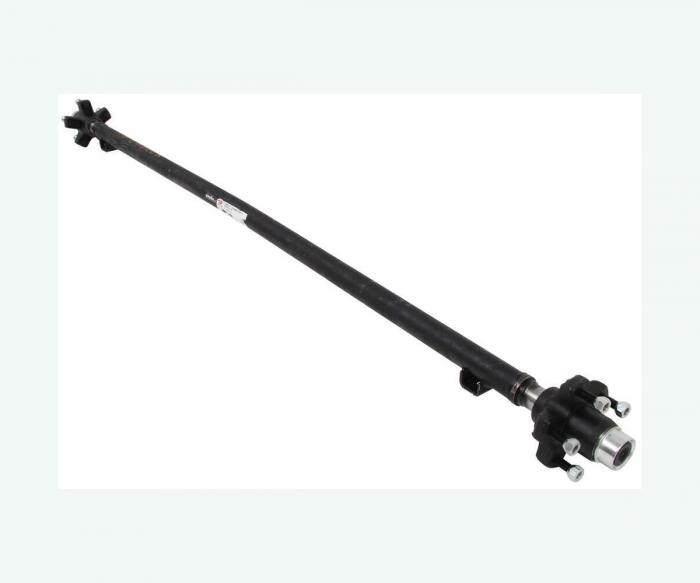

Straight trailer idler axle measures 72" from hub face to hub face and 58" from spring center to spring center. Includes idler hubs - with bearings, races, and seals - for 8" to 12" wheels. EZ-Lube spindles for simple lubrication.

Features:

· Round axle beam acts as part of your trailer's suspension system

· Replace an axle on your trailer

· Fabricate a suspension to fit your application

· High-strength steel construction

· Bend in axle creates zero camber angle for even road-to-tread contact across the width of your trailer's tires

· Best for straight-line acceleration and steady, controlled towing

· Underslung design - spring seats welded to underside of axle for mounting leaf springs

· Low ride height makes it easier to load and unload your trailer

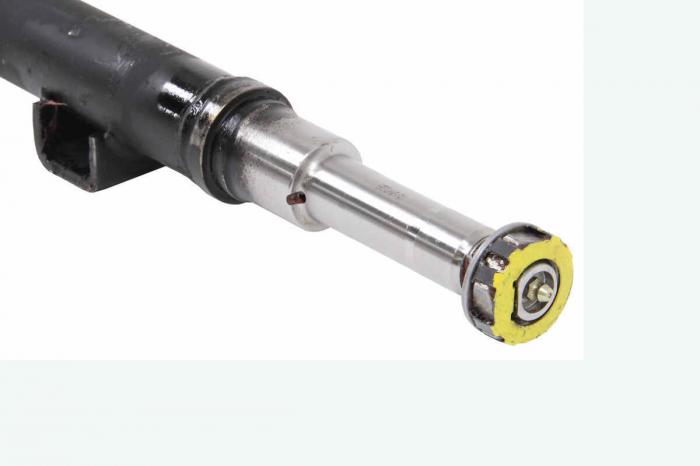

· Straight, EZ-Lube spindles - no drop

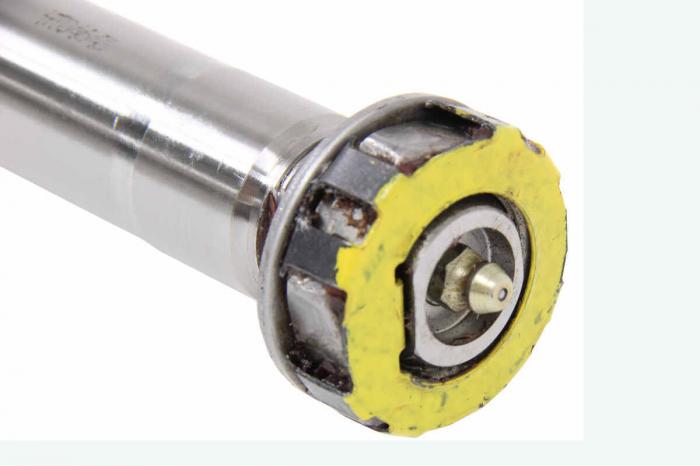

· Built-in grease zerks for simple lubrication

· Spring seats and spindles are welded on

· Cast iron idler hubs are sturdy and durable

· Bearings, races, seals, grease caps, wheel studs, lug nuts, and marine-grade wheel bearing grease included

Specs:

· Weight capacity: 2,200 lbs

· Hub-face-to-hub-face length: 72"

· Spring-center-to-spring-center length: 58"

· Hub bolt pattern: 5 on 4-1/2"

· Hub flange diameter: 5-1/2"

· Tubing outer diameter: 1-3/4"

· Spindle size: 1-1/16"

· Grease cap outer diameter: 1.986"

· Wheel stud diameter: 1/2"

· Wheel size: 8" - 12"

Bearing, Race, and Seal Information

· Bearings

· Inner bearing: L44649

· Outer bearing: L44649

· Races

· Inner race: L44610

· Outer race: L44610

· Seal: 10-60

· Inner diameter: 1.50"

· Outer diameter: 1.987"
