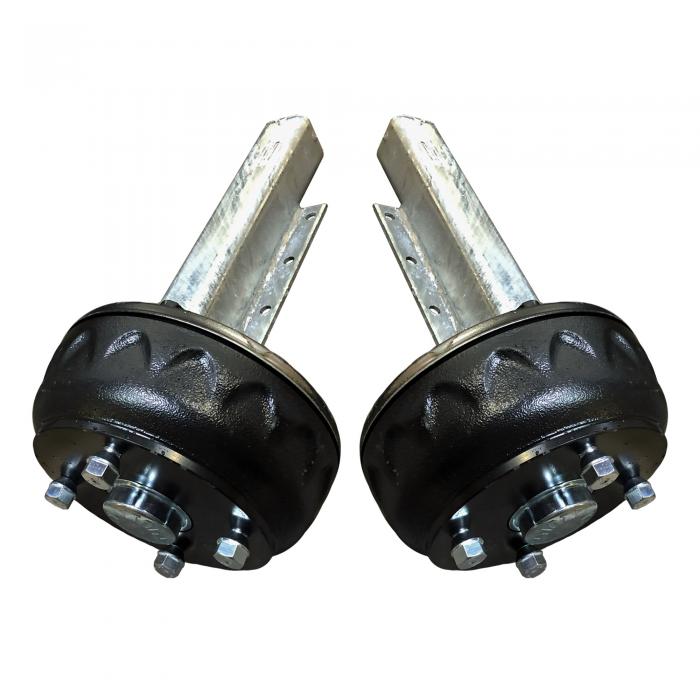

1300kg Knott Suspension Units Braked - 5.5″ PCD(Pair)

Pair of genuine 1300kg Knott suspension units. Come complete with Knott 200×50 brake drum.

Galvanised body with rubber suspension arms, 8 hole mounting.

These suspension units have a standard length shaft for wheels that have no offset.

These come pre assembled from the supplier to make for quicker repair/build.

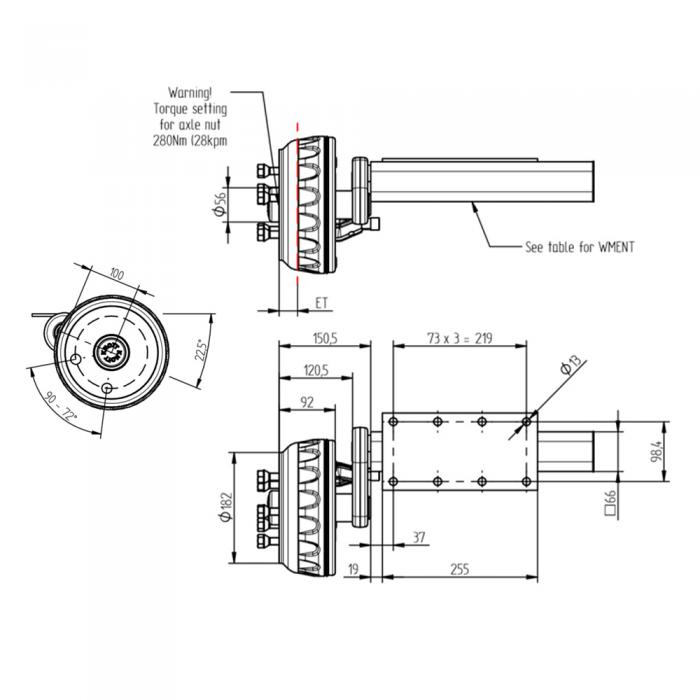

Detail Specification:

· 1300kg Capacity Per Pair

· 4 studs on a 5.5″ PCD

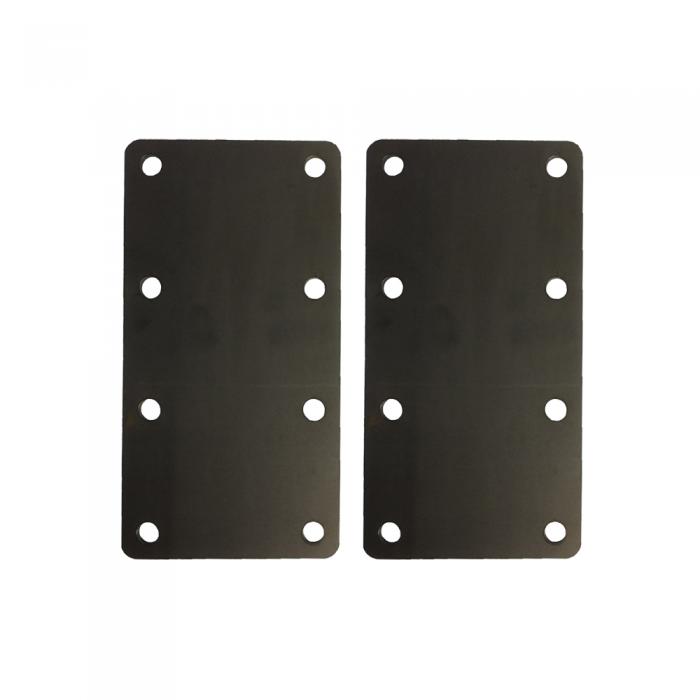

· 8 hole mounting plate size 250mm x 130mm

· Fixing centres along the 4 bolt holes 73mm between each one

· Fixing centres width of the 2 bolt holes 98.4mm between the two
